Thông tin chi tiết sản phẩm:
|
| Mẫu số: | JP-180ST | Phương tiện làm sạch: | Làm sạch ướt |
|---|---|---|---|
| Tự động hóa: | Bán tự động | Điều khiển: | PLC |
| Tính thường xuyên: | 28/40Hz | Vật liệu: | thép không gỉ 304 |
| Độ dày bể: | 2 mm | Dung tích bể: | 55L |
| hẹn giờ: | Có thể điều chỉnh 0-30 phút | Máy sưởi: | 20-95 độ |
| điện siêu âm: | 900W | Điện sưởi ấm: | 1500W |
| Kích thước đơn vị: | 680*550*735mm | Điện áp: | 110V/220V |
| đầu dò: | 12 | ||
| Làm nổi bật: | 50L ultrasonic cleaning machine,high frequency ultrasonic cleaner,large volume industrial ultrasonic cleaner |
||

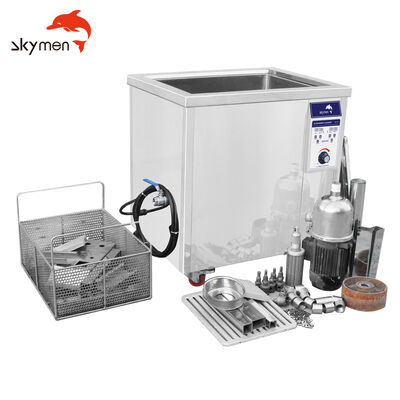

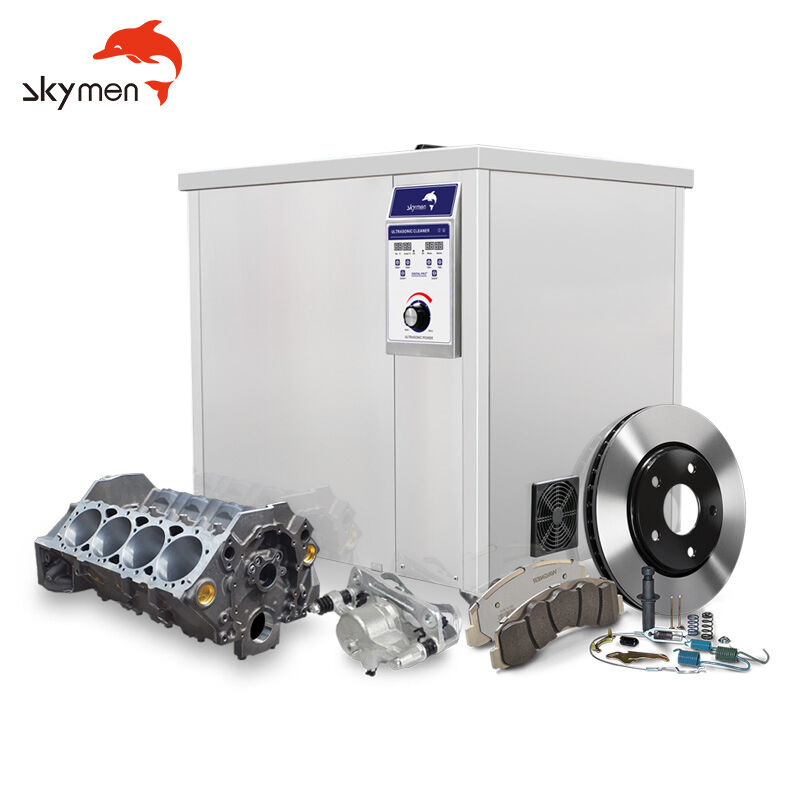

Model No. JP-180ST - A professional-grade ultrasonic cleaning system designed for industrial applications requiring high-performance cleaning capabilities.
| Specification | Details |
|---|---|
| Ultrasonic Frequency | 28/40 kHz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 55 L |
| Timer | 1~99min adjustable |
| Heater | 20°C to 95°C adjustable |
| Degas Function | Yes |
| Semiwave Function | Yes |
| Power Supply | AC 100~120V, 50/60Hz or AC 220~240V, 50/60Hz |
| Ultrasonic Power | 900W |
| Heating Power | 1500 W |
| Standard Equipment | Basket & Cover |
| Dimension Type | Measurements (L x W x H) |
|---|---|
| Tank Size | 500×350×300mm |
| Unit Size | 680×550×735mm |
| Package Size | 790×620×890mm |
| Net Weight / Gross Weight | 54kg / 87kg |
| Warranty | 1 Year |
CE / ROHS / FCC / PSE / ISO9001 Certified
Ultrasonic cleaning operates on the cavitation effect caused by high-frequency ultrasonic wave vibration signals in fluid. This process creates microscopic bubbles that implode violently, generating intense scrubbing action on item surfaces. The microscopic bubbles penetrate even the smallest crevices, ensuring thorough and consistent cleaning.
This technology effectively removes dirt and grime that would typically require extensive manual cleaning. It has proven successful in cleaning various instruments and mechanical parts, including carburetors, restoring them to near-new condition without damaging delicate components.
Cavitation combined with sweep cleaning technology provides superior cleaning compared to other industrial-level methods. Our equipment excels in surface-contaminant reach and removal for both small and large applications.
Industrial ultrasonic cleaning cycles typically complete in under 10 minutes. Cleaning time varies based on component size, composition, contaminants, and the frequencies, temperatures, and cleaning agents used.
High-quality cleaning performed safely allows parts to operate with maximum efficiency under reduced stress. This extends component lifespan compared to partially cleaned or surface-damaged parts from alternative methods.
We provide comprehensive ultrasonic cleaning solutions, from small stainless steel tanks to automated modular systems. Our expertise includes custom-built cleaners with various frequencies to address specific application requirements. Our patented ultrasonic technology, transducer applications, and engineering capabilities in stainless steel construction enable us to meet virtually any manufacturing line need.
