Thông tin chi tiết sản phẩm:
|
| Mẫu số: | JTS-1090 | Tự động hóa: | Tự động |
|---|---|---|---|
| Điều khiển: | CNC | Quyền lực: | 3600W |
| Tính thường xuyên: | 28kHz /40kHz | Vật liệu: | Thép không gỉ 304/316 |
| kích thước bể: | 1000x600x600 | Công suất xe tăng: | 360L |
| Nhiệt độ nóng tối đa: | 20 ~ 80C có thể điều chỉnh | Năng lượng sưởi ấm: | 9kW |
| hẹn giờ: | 0 ~ 30 phút có thể điều chỉnh | Làm khô hạn: | "" Van |
| Làm sạch công suất bể: | AC220V/380V/415V/440V. 3 | máy phát điện: | AC110V/ 220V / 240V, 1 |
| Tính năng máy phát điện: | VỚI CHẾ ĐỘ QUÉT VÀ ĐIỀU KHIỂN TỪ XA | ||
| Làm nổi bật: | Brass Musical Instrument Ultrasonic Cleaner,CNC Control Ultrasonic Cleaner,CE Certified Ultrasonic Cleaner |
||
Ultrasonics Cleaning Solutions can manufacture any size of machine to suit your part cleaning requirements. Skymen ultrasonic part cleaning machine allows most filter sizes to be cleaned easily and without hassle. With a generator cabinet, this machine will restore your filters, increasing their life and reducing your costs.
The main washing principle of ultrasonic cleaner is to transfer sound energy into mechanical vibration. Its ultrasound radiates the cleaning solution through the cleaning cell wall. The ultrasound makes micro-bubbles in the liquid keep vibrating under the effect of sound waves. When sound pressure reaches a certain degree, bubbles quickly expand and suddenly close, creating shock waves that produce pressure of 1012-1013PA and high temperature around bubbles. This ultrasonic cavitation pressure separates non-soluble contaminants and differentiates them into liquid. Steam-type cavitation impacts dirt directly and repeatedly.
| Model No. | JTS-1030 | JTS-1036 | JTS-1060 | JTS-1072 | JTS-1108 | JTS-1144 |
|---|---|---|---|---|---|---|
| TANK DIMENSION(mm) | 500x406x500 | 500x460x550 | 700x650x650 | 1000x600x600 | 1000x900x600 | 1200x1000x800 |
| OVERALL DIMENSION(mm) | 680x586x850 | 680x640x900 | 900x850x1000 | 1200x800x950 | 1240x1140x950 | 1440x1240x1150 |
| MAX. CAPACITY | 101L | 126L | 295L | 360L | 540L | 960L |
| CONSTRUCTION CASE | SUS 304 (MIRROR SHINING IMAGE AVAILABLE) | |||||
| CONSTRUCTION TANK | SUS 304 / 316L | |||||
| ULTRASONIC POWER(MAX.) | 1500W | 1800W | 3000W | 3600W | 5400W | 7200W |
| ULTRASONIC FREQUENCY | 28kHz/40kHz/68kHz/80kHz/120kHz | |||||
| MAX. HEATING TEMP. | 20~80°C ADJUSTABLE | |||||
| HEATING POWER | 3KW | 4.5KW | 6KW | 9KW | 12KW | 24KW |
| TIMER | 0~30min adjustable | |||||
| DRAIN | ¾" VALVE | |||||
| LID & BASKET | TAKE-OFF / STRUT LID; SUS 304 | |||||
| CLEANING TANK'S POWER REQUIREMENT | AC220V/380V/415V/440V. 3 | |||||
| GENERATOR'S POWER REQUIREMENT | AC110V/ 220V / 240V, 1 | |||||
| GENERATOR | WITH SWEEP MODE AND REMOTE CONTROL | |||||
| FEATURES | MULTI-DIRECTION CASTORS WITH BRAKE; 1 YEAR WARRANTY | |||||
| Optional | FILTRATION SYSTEM (PUMP, SUS FILTER, OIL CATCH CAN) | |||||

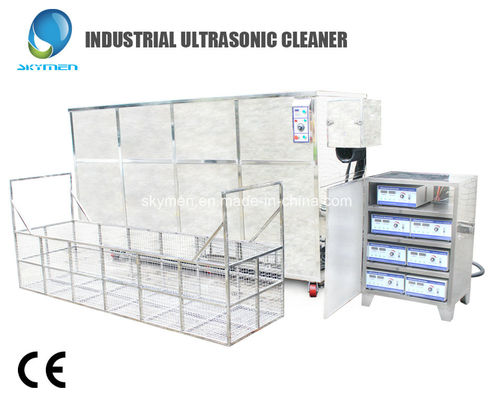

JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Ideal for car parts washing, engine block cleaning, workshop sonic bath cleaning. Ideal to clean rust, carbon, paint, heavy oil, without damage to parts inside tank with suitable cleaning liquid.
Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaners with different capacities. We are a famous ultrasonic manufacturer with R&D, production and sales capabilities. High quality products and after-sales services are available from us.
Not only standard ultrasonic cleaners, but any non-standard models can be designed by our engineers. Professional suggestions and drawings are available. Welcome to visit our factory, provide your guidance and conduct business negotiations.
Frequency is suggested based on pollutants in the objects:
Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
A large variety of different formulas are designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty time, replacement parts will be sent free of charge. Technical support is also available after 1 year.
Ultrasonic cleaners can be effectively used for cleaning, disinfecting, degreasing, descaling, stripping, burnishing, deflashing, removing rust, dust, oil, and more.
