Thông tin chi tiết sản phẩm:
|
| Mô hình không.: | JP-11152 | Tính thường xuyên: | 40KHz/28KHz |
|---|---|---|---|
| Quyền lực: | 0-57600W | Năng lượng sưởi ấm: | 69000W |
| Trọng lượng ròng: | 5000kg | Tổng trọng lượng: | 5300kg |
| Dung tích: | 8300L | kích thước bể: | 2500*2000*1700mm |
| Kích thước đơn vị: | 300*250*240cm | Kích thước gói: | 310*260*250cm |
| Vật liệu: | Thép không gỉ SUS304 | Độ dày bể: | 3 mm |
| Số lượng chuyển đổi: | 1152pcs | Phạm vi nhiệt độ: | Nhiệt độ phòng ~ 95 ° C |
| Tải giỏ: | 2000kg | ||
| Làm nổi bật: | 8500L ultrasonic cleaner for heat exchanger,industrial ultrasonic cleaner 28kHz 40kHz,large capacity ultrasonic cleaner with warranty |
||

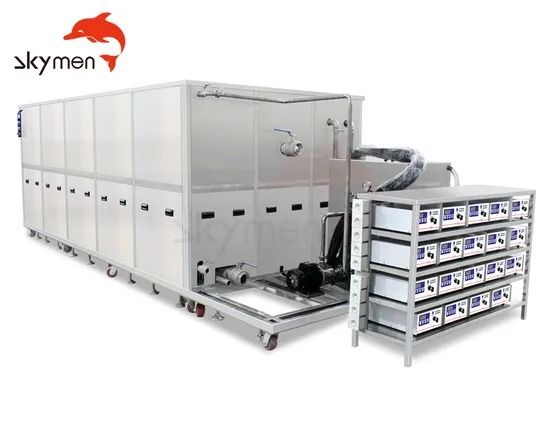

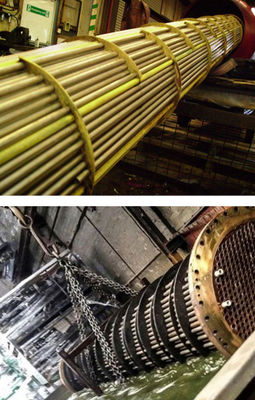

This industrial ultrasonic cleaning machine is specifically designed for metal heat exchanger cleaning. After metal bars are extruded into wire, the outer surface often retains carbonized film and oil residues that are difficult to remove through conventional methods. Our ultrasonic cleaning solution provides an efficient alternative to acid cleaning and other traditional approaches.

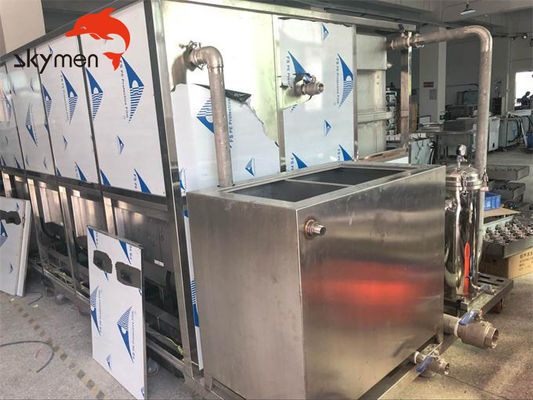

The system features a continuous wire-cutting and high-efficiency cleaning design, with a rough washing section composed of cleaning liquid storage tank, transducers, circulation pump, filter, and piping system. The complete process includes ultrasonic washing followed by blow drying.
This equipment is widely used for various wire types including silk, tungsten, molybdenum, and copper wires (prior to insulating paint coating). The integrated control system ensures simple, convenient, and effective operation.
| Model | JP-11152ST |
|---|---|
| Parameter |
Function: Ultrasonic cleaning
Frequency: 28/40kHz (customizable)
Tank Material: SUS 304 (SUS 316 optional)
Tank Thickness: 3mm
Dimensions: 2500×2000×1700mm
Capacity: 8500L
Transducers: 1152pcs
Ultrasonic Power: 57600W
Heating Power: 69000W
Timer: 0-99 hours
Temperature Range: Room temp to 95°C
Drain/Water Connections: Standard
Generator: 32 sets (1800W each)
Basket Load Capacity: 2000KG
|
| Packing |
Overall Size: 300×250×240cm
Packed Size: 310×260×250cm

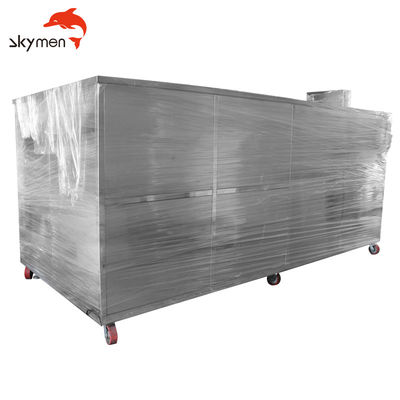

Packing: Wooden case (fumigation-free)
Weight: N.W 5000KG / G.W 5300KG
|
| Power Supply | 380V 3 phase; 220V 3 phase; 415V; 600V |
| Warranty | 1 year parts warranty with lifetime technical support |
| Certifications | CE, RoHS, FCC, REACH |
| Lead Time | 20-30 working days after deposit |
For parts with significant dirt accumulation, we recommend pre-cleaning through dipping or spraying to remove most contaminants before ultrasonic treatment. Small items or complex-shaped parts benefit from using a cleaning net or rotating during ultrasonic exposure to ensure even cleaning distribution.
Skymen Cleaning Equipment Shenzhen Co. Ltd. specializes in ultrasonic cleaning technology with over 13 years of industry experience. Our product range includes household, benchtop, and industrial-scale ultrasonic cleaners, as well as immersible transducer systems. Our dedicated engineering team focuses on research and development while collaborating with customers to develop customized solutions.
We offer a 12-month warranty on all SKYMEN ultrasonic cleaners. During this period, we provide free replacement parts and technical support. Continued technical assistance is available after the warranty period.
Ultrasonic cleaning is generally safe for most components. The powerful implosion effect (thousands per second) effectively cleans while maintaining part integrity. For sensitive items, we recommend careful observation during initial cleaning cycles.
