Thông tin chi tiết sản phẩm:
|
| Mô hình không.: | JTS-1216 | Phương tiện làm sạch: | Làm sạch ướt |
|---|---|---|---|
| Tự động hóa: | Bán tự động | Điều khiển: | Plc |
| Vật liệu: | SUS304/SUS316L | Cung cấp điện: | 380V 3 pha |
| Tần số siêu âm: | 28KHz / 40KHz | Đầu dò siêu âm: | 12 | 18 | 24 | 30 | 36 | 72 |
| điện siêu âm: | 600W | 900W | 1200W | 1500W | 1800W | 3600W | Năng lượng nóng: | 1,5kW | 3kw | 4,5kw | 9kW |
| Công suất xe tăng: | 38l | 56l | 88l | 101l | 126l | 369l | Bề mặt hoàn thiện: | Điều trị mạ cứng CR (hơn 20 micron) |
| Vật liệu nhà ở: | Thép không gỉ | Máy phát điện tử: | KG600 | KG900 | KG1200 | KG1500 | KG1800 | KG3600 |
| Yêu cầu quyền lực: | AC 220V / 240V, 1, 15amp | AC 220V / 240V, 1, 25amp | ||
| Làm nổi bật: | industrial ultrasonic cleaner 380V,3 phase ultrasonic cleaner PLC control,custom industrial ultrasonic cleaner |
||

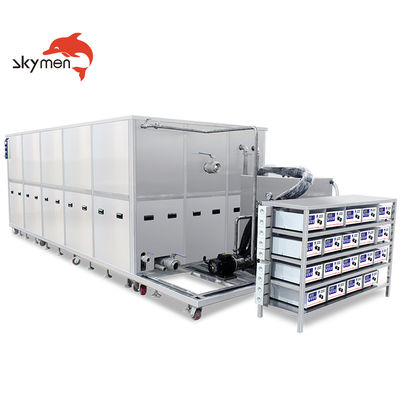

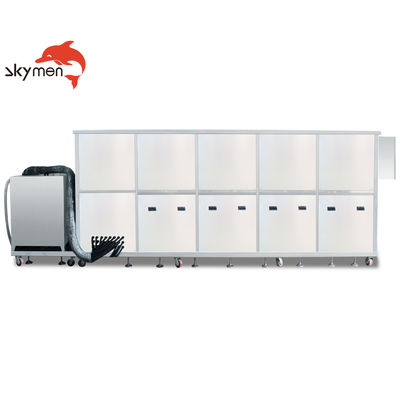

Original manufacturer professional carburetor ultrasonic cleaning machine for industrial applications.
This ultrasonic cleaning machine features a filter system that allows solvent recycling, saving both time and money. The tank size is fully customizable, making it suitable for cleaning various components including car parts, electric parts, molding parts, and PCBs.
| Model | Skymen™ | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 | JTS-1072 |
|---|---|---|---|---|---|---|
| TANK'S WORKING DIMENSION (mm) L1 | 355 | 406 | 500 | 500 | 500 | 1110 |
| TANK'S WORKING DIMENSION (mm) W1 | 305 | 305 | 355 | 406 | 460 | 600 |
| TANK'S WORKING DIMENSION (mm) H1 | 355 | 460 | 500 | 500 | 550 | 600 |
| OVERALL DIMENSION (mm) L2 | 535 | 586 | 680 | 710 | 710 | 1320 |
| OVERALL DIMENSION (mm) W2 | 485 | 485 | 535 | 586 | 640 | 780 |
| OVERALL DIMENSION (mm) H2 | 750 | 680 | 720 | 720 | 770 | 820 |
| TANK'S TOTAL CAPACITY | 38L | 56L | 88L | 101L | 126L | 369L |
| TANK'S MATERIAL | SUS304 / SUS316L | |||||
| IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment (20+ microns) | |||||
| ULTRASONIC FREQUENCY* | 28kHz / 40kHz (68kHz / 80kHz / 120kHz also available) | |||||

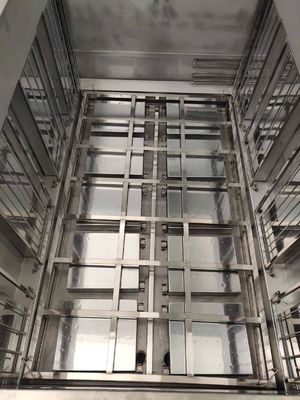

The JTS series single tank ultrasonic cleaner system includes a replaceable transducer box and generator. These components can be either built-in or separate while working together to perform the ultrasonic cleaning process. Transducer boxes can be immersible mounted in the fluid tank, with placement options including one side, both sides, or bottom mounting inside the tank.

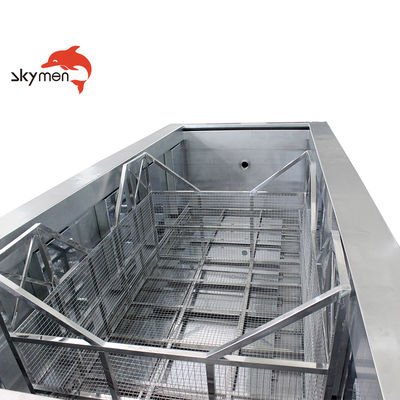

The number and placement of transducers are carefully selected to deliver maximum cleaning results for any parts cleaning application. Stainless steel baskets are available as optional accessories.
