Pls see the model JP-1108G detail specification as below:

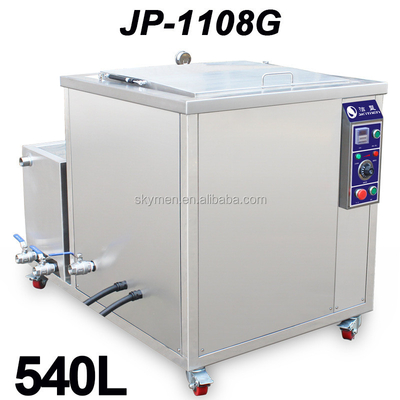

- Model: JP-1108G
- Internal tank size: 1000*900*600mm (L*W*H)
- Capacity/Volume: 540liter
- Frequency: 28KHZ or 40KHZ(40KHZ for precision parts cleaning, 28KHZ for heavy dirty oil parts cleaning)
- Ultrasonic power: 5400W( From 1400W to 3600W adjustable)
- Heating power: 21KW ( stainless steel heating elements immersed in water)
- Heater: Normal to 95 degree adjustable
- Timer: 1-99 hours adjustable
- Power supply: AC380V, 50HZ, 3phase or AC220V, 60HZ,3phase
- Unit size: 1200*1100*1000mm
- Wooden Packaging: 1300*1200*1150mm (L*W*H)
- Gross Weight: 350kgs
- With filtration cycle system
- Filter system advantage:
- 1. Improve the utilization of cleaning solvent
- 2. Reduce the cost of cleaning solution
- 3. Avoid secondary pollution of the cleaning parts
- 4. Save labor cost of replacing cleaning solution
- Warranty: 1 year warranty and technical support for life,
- Free spare parts for exchanging within 1 year warranty.
- Delivery: immediate dispatch (in stock) or 15-30 working days ( Without in stock)
- With CE/ROHS/FC/ISO/BSCI/ certificate.
Product specification:
Product details:
Cleaning effect:
Product parameter:
| G Series (single tank with filter system) |
| Model |
Capacity |
Tank size |
Transducer |
Ultrasonic Power |
Heating Power |
| (L) |
L*W*H (mm) |
(pcs) |
(W) |
(W) |
| JP-120G |
38 |
500X300X250 |
12 |
600 |
1500 |
| JP-180G |
53 |
500X350X300 |
18 |
900 |
1500 |
| JP-240G |
77 |
550X400X350 |
24 |
1200 |
3000 |
| JP-300G |
99 |
550X450X400 |
30 |
1500 |
4500 |
| JP-301G |
96 |
800X300X400 |
30 |
1500 |
4500 |
| JP-360G |
135 |
600X500X450 |
36 |
1800 |
4500 |
| JP-480G |
175 |
700X500X500 |
48 |
2400 |
6000 |
| JP-600G |
264 |
800X600X550 |
60 |
3000 |
6000 |
| JP-720G |
360 |
1000X600X600 |
72 |
3600 |
9000 |
| JP-840G |
420 |
1500X700X400 |
84 |
4200 |
15000 |
| JP-960G |
480 |
1200X500X800 |
96 |
4800 |
15000 |
| JP-1108G |
540 |
1000X900X600 |
108 |
5400 |
18000 |
| JP-1120G |
640 |
1000X800X800 |
120 |
6000 |
21000 |
| JP-1132G |
800 |
1000X1000X800 |
132 |
6600 |
24000 |
| JP-1144G |
960 |
1200X1000X800 |
144 |
7200 |
24000 |
| JP-1180G |
1200 |
1200X1000X1000 |
180 |
9000 |
36000 |
| JP-1192G |
1440 |
1200X1200X1000 |
192 |
9600 |
36000 |
| JP-1216G |
1500 |
1500*1000*1000 |
216 |
10800 |
36000 |
Application:
- Machinery industry: suitable for oil removal and rust removal of mechanical parts, carbon removal from engine, carbutetor, filters and etc. parts cleaning.
- Automobile industry: suitable for oil, grease, fouls, carbon and rust removal for the inproduction or automainenace auto parts.
- Electronic instrument and meter industry: High precision cleaning for precision components dust removal deoxidation, rosin & welding spot removal from circuit board.
- Medical, Chemical and biological industry: cleaning, disinfection, sterilization on medical equipment and experimental vessels, etc.
- Petrochemical textile industry: cleaning on the stator winding, metal screen, chemical container, and radiator. etc.
Introduction of Skymen:
Skymen Ultrasonic that sets up in 2007, is a professional manufacturer
with over 39,000 square meters of factory and monthly output over 100,000 pcs.
We, a team total at over 300 employees, provide OED/ODM Support for benchtop and industrial ultrasonic cleaners with our own R&D Base.
Our products have passed BSCI, ISO9001, ISO13485, CE, PSE, RoHS, REACH, FCC, KC, certificates etc.
Therefore, we have large stock, fast delivery and professional pre-sales and after-sales services of our high quality ultrasonic cleaners.
Our guarranty ultrasonic cleaners export to all over the world. And many dealers have cooperated with us.
We have ultrasonic cleaners of 2-30 Liter Benchtop Series and 38-20000 Liters Industrial Series
which could remove oil, dust, rust, stain of autoparts, industrial engines, any other mechanical parts etc.
Q & A:
1. Q: Are you a manufacturer?
A: Yes, we are the professional maufacturer of 0.8-30 Liters Benchtop series and 38-20000 Liters industrial series, different kinds of ultrasonic cleaners. Our guarranty ultrasonic cleaners export to all over the world. And many dealers have cooperated with us. The retail and wholesale competitive factory price will offer, you could get the best price and high quality product, professional pre-sales, after-sales services from us.
2. Q: What functions can we make for ultrasonic cleaners?
A: There are so many functions we can make for ultrasonic cleaners to meet all the cleaning needs for the clients in different kinds of industries. Such as PLC control, Lifting function, Spraying function, Condensation function, Bubbling functiion, Agitation funciton, Filteration function, Drying function, etc., The OED/ODM Support for benchtop and industrial ultrasonic cleaners will provide with our own R&D Base. If you need any other more functions, pls directly contact us to design and customize for you.
3. Q: How about the after-sales service and warranty?
A: We offer 1-year warranty for the after-sales service of ultrasonic cleaners, during the 1-year warranty,
free spare parts for exchaning and Technical support for life will provide, you only need to pay the freight for the spare parts.
4. Q: What is the delivery time?
A: The goods in stock, we could deliver to your forwarder within 1 day and right away. If without stockage, our fast manufacturing time is 5-25 woking days and as soon as we receive your payment for ultrasonic cleaners.
5. Q: What certificates for products we have?
A: Our products have passed BSCI, ISO9001, ISO13485, CE, PSE, RoHS, REACH, FCC, KC, certificates etc. If you need any other more product certificate, pls directly contact us to show you more. To achieve our long-term cooperation, we could also make the other product certificates or certificate of origin for you.
